Architecting Multi-Layer Cache Invalidation: Redis Pub/Sub, Edge CDNs, and Stale-While-Revalidate Patterns

There are only two hard things in Computer Science: cache invalidation and naming things. As high-traffic web applications scale to handle millions of daily active users, relying on a single database or serverless instance creates severe latency bottlenecks.

To maintain sub-50ms global page paints, modern enterprise architectures implement a Multi-Layer Cache Pipeline: 1. L1 Edge CDN Cache: Serves static HTML assets directly from edge PoPs worldwide. 2. L2 Application In-Memory / Redis Cache: Caches expensive database queries, GraphQL responses, and session tokens. 3. L3 Database Engine: The underlying persistent source of truth (PostgreSQL / MySQL / Magento EAV).

However, introducing multiple cache layers creates data consistency challenges. When an administrator updates a product price or stock count, stale data can linger across CDN edge nodes and Redis instances.

Here is a technical blueprint for engineering an automated, multi-tier cache invalidation pipeline using Redis Pub/Sub, Edge CDNs, and Stale-While-Revalidate (SWR) headers.

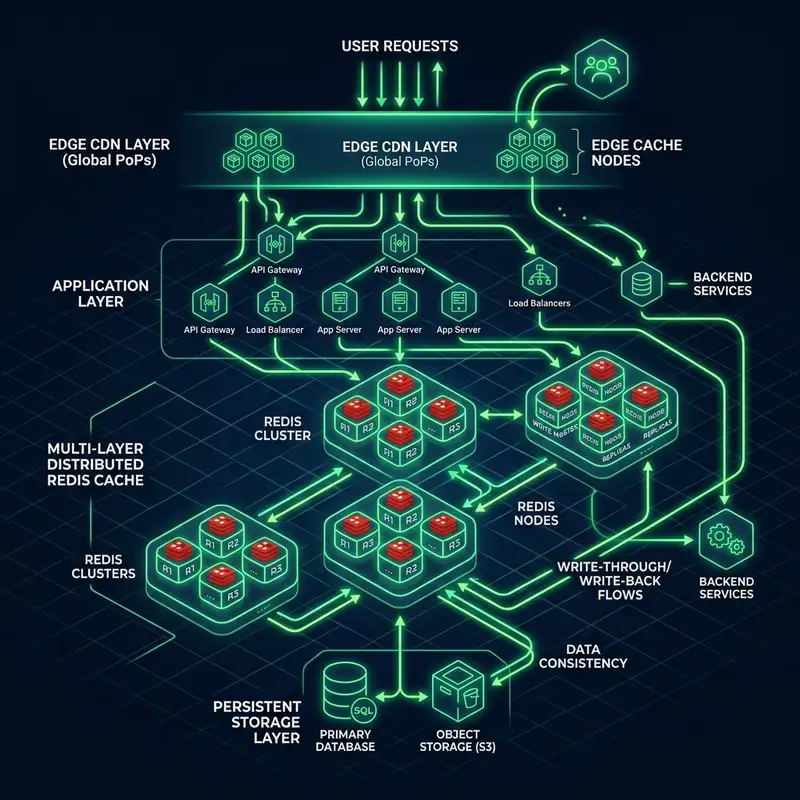

The Multi-Layer Caching Topology

code

[ Client Browser ]
        │ (1. HTTP Request)
        ▼
[ L1: Edge CDN (Vercel / Cloudflare) ] ── (Hit: < 50ms) ──► Return Cached HTML/JSON
        │ (Miss / Stale)
        ▼
[ L2: Distributed Redis Cluster ]    ── (Hit: < 5ms)  ──► Return Cached Data
        │ (Miss)
        ▼
[ L3: Primary SQL Database ]         ── (Query: 100ms) ──► Write Back to Redis & CDN

Step-by-Step Implementation

1. Configuring Stale-While-Revalidate (SWR) HTTP Headers SWR allows the browser or CDN edge to instantly return a cached payload while asynchronously triggering a non-blocking background fetch to refresh stale data:

typescript

// app/api/catalog/products/route.ts
import { NextResponse } from "next/server";

export async function GET() {
  const products = await fetchProductsFromDatabase();

  return NextResponse.json(products, {
    headers: {
      // s-maxage=60: Fresh on CDN edge for 60 seconds
      // stale-while-revalidate=86400: Serve stale payload up to 24 hours while revalidating in background
      "Cache-Control": "public, s-maxage=60, stale-while-revalidate=86400",
      "CDN-Cache-Control": "public, s-maxage=300",
    },
  });
}

2. Broad-Scale Cache Invalidation via Redis Pub/Sub When a database update occurs, microservices or database triggers publish an invalidation event to a Redis Pub/Sub channel. Subscribed application workers immediately purge regional Redis keys and trigger CDN API purges:

typescript

// lib/cache/invalidation.ts
import Redis from "ioredis";

const publisher = new Redis(process.env.REDIS_URL!);
const subscriber = new Redis(process.env.REDIS_URL!);

const INVALIDATION_CHANNEL = "cache:invalidate:events";

export interface InvalidationEvent {
  entity: "product" | "category" | "user";
  id: string;
  tags: string[];
}

// 1. Publisher: Triggered on database write / CMS webhook
export async function publishCacheInvalidation(event: InvalidationEvent) {
  await publisher.publish(INVALIDATION_CHANNEL, JSON.stringify(event));
}

// 2. Subscriber: Listens across distributed app server nodes
subscriber.subscribe(INVALIDATION_CHANNEL, (err) => {
  if (err) console.error("Failed to subscribe to invalidation channel:", err);
});

subscriber.on("message", async (channel, message) => {
  if (channel === INVALIDATION_CHANNEL) {
    const event: InvalidationEvent = JSON.parse(message);
    console.log(`Received cache purge trigger for ${event.entity}: ${event.id}`);

    // Purge regional Redis keys
    const redisKey = `cache:${event.entity}:${event.id}`;
    await publisher.del(redisKey);

    // Call CDN Purge API (e.g. Cloudflare / Vercel Edge Cache)
    await purgeCdnCache(event.tags);
  }
});

async function purgeCdnCache(tags: string[]) {
  if (process.env.CLOUDFLARE_ZONE_ID && process.env.CLOUDFLARE_API_TOKEN) {
    await fetch(
      `https://api.cloudflare.com/client/v4/zones/${process.env.CLOUDFLARE_ZONE_ID}/purge_cache`,
      {
        method: "POST",
        headers: {
          Authorization: `Bearer ${process.env.CLOUDFLARE_API_TOKEN}`,
          "Content-Type": "application/json",
        },
        body: JSON.stringify({ tags }),
      }
    );
  }
}

Cache Invalidation Patterns Comparison

Pattern	Invalidation Speed	Database Load	Data Consistency
Time-To-Live (TTL) Expiration	Passive (Waits for timer expiration)	Moderate	Eventual Consistency (Delayed updates)
Stale-While-Revalidate (SWR)	Instant (Serves stale; revalidates async)	Low	High (Updated on next request)
Event-Driven Redis Pub/Sub	Immediate (< 10ms purge across nodes)	Minimal	Strict Consistency

Best Practices for Enterprise Multi-Layer Caching

Prevent Cache Stampedes (Thundering Herd): When a popular cache key expires under high traffic, thousands of concurrent requests hit the database simultaneously. Implement Mutex Locks or Singleflight pattern so only 1 request queries the database while others wait for the refreshed key.
Tag-Based Group Invalidation: Assign hierarchical tags (e.g. product-123, category-apparel) to cache items so invalidating a parent category automatically purges all child product pages.
Monitor Cache Hit Ratios: Aim for a > 95% L1 CDN hit ratio and a > 99% L2 Redis hit ratio to ensure database CPU usage remains low during traffic surges.

By combining SWR edge headers with event-driven Redis Pub/Sub invalidation, enterprise web applications achieve sub-50ms global latency while guaranteeing strict content consistency across all devices!
